PH-15

Product Introduction

The PH-15 is a compact and multifunctional dual frequency full frequency speaker system with a built-in high-power optimized 15 inch low-frequency driver and a rotatable angle of 100 ° × A 3-inch high-density compression driver for a 50 ° traditional horn waveguide. Accurate coverage angle can easily achieve excellent spatial sound field coverage and provide high-definition sound to the audience, with only slight sound field overflow. Ensures that sound waves can reach the audience simultaneously. This clear and consistent sound image effect helps to distinguish and locate the direction of the student source. Due to its excellent performance in audio and video vocals, wide bandwidth, natural and smooth sound reproduction, stable directional coverage, large diffusion range, and simple box design for easy flow or permanent lifting, this model is the best choice for fixed installation and mobile performance.


Product Parameters

System Type
Two-way 15-inch low-frequency direct-firing
speaker

Frequency

55 Hz-18 kHz(±3dB)
Soeaker Unit LF 15"×1+HF 3"×1
Power 450W(Aes),1800W(Peak)
Sensitivity101dB
Max SPL132dB(Peak)
Impedamce
Dispersion50/100°×55°(H×V)
Connector2×Neutrik NI4
Wiring Mode+1/-1
Dimension(W×H×D)440×690×380mm
Weight

21.7kg

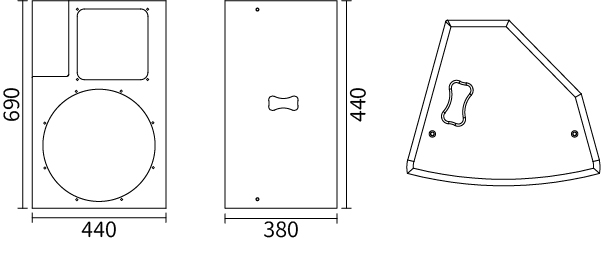

Dimension
