A professional audio production enterprise integrating R&D, production, sales and service
Main Features ● QS-15 is a 10" two-way full-range speaker with built-in computer-detected passive crossover ● Using the Italian CLIO computer test equipment for detailed sound quality measurement ● Treble uses 3" B diluted diaphragm, 80OH/50OV CD horn, making the high frequency more transparent, bright, more penetrating, with optimized performance woofer, with long-range projection strength and flexibility ● Special trapezoidal box design, sturdy box structure, easy to install and array, black polyester waterproof paint for cabinet, easy to protect, not only waterproof, moisture-proof, light-resistant, and easy to protect daily ● In addition to the standard hanging device, the mounting method also has a metal bracket hole at the bottom of the box to meet the installation requirements of different places. ● This speaker is suitable for sports venues, theaters, DISCO, nightclubs and other entertainment venues. ● When a wider sound field effect is required, QS18, S8018 and other ultra-low frequency boxes can be used together for better sound field effect. |
Product Parameters | |
| System Type | Two-way 15-inch low-frequency direct-firing speaker |
Frequency | 55 Hz-18 kHz(±3dB) |
| Speaker Unit | LF 15"×1+HF 3"×1 |
| Power | 400W(Aes),1600W(Peak) |
| Sensitivity | 99dB |
| Max SPL | 130dB(Peak) |
| Impedamce | 8Ω |
| Dispersion | 80°×50°(H×V) |
| Connector | 2×Neutrik NI4 |
| Wiring Mode | +1/-1 |
| Dimension(W×H×D) | 471×690×443mm |
| Weight | 30.5kg |

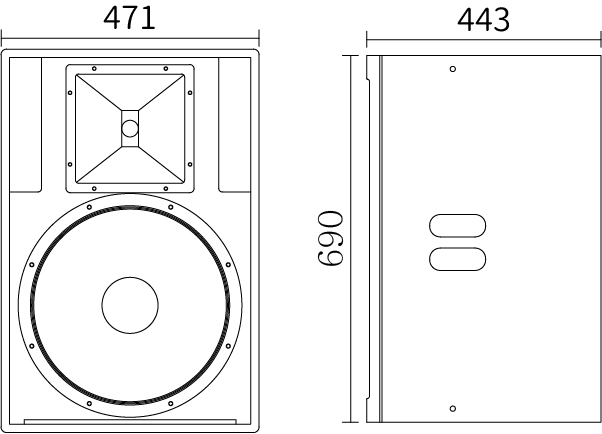

Dimension
