Product Introduction The 12XT is a high-end representative of the WAX · AUDIO XT series coaxial speaker system, designed for stage monitoring and distributed sound reinforcement applications. It has an operating frequency bandwidth of 55HZ-20KHZ. If combined with the SUB18 subwoofer, the low frequency can reach 32HZ. The 12XT adopts an advanced coaxial structure design, including a 1.75 "diaphragm compression driver unit loaded with a fixed directional conical waveguide and a 12" bass unit, It can provide fixed 60 ° axial symmetric directional output, integrated compact bass backward design, perfect frequency response, phase response and excellent return capability. |
Product Parameters | |
| System Type | Dual frequency 12-inch |
Frequency | 55 Hz-20 kHz(±3dB) |
| Soeaker Unit | LF 12"×1+HF 1.75"×1 |
| Power | 350W(Aes),1200W(Peak) |
| Sensitivity | 99dB |
| Max SPL | 133dB(Peak) |
| Impedamce | 8Ω |
| Dispersion | 60°(±10°）Symmetric |
| Connector | 2×Neutrik NI4 |
| Wiring Mode | +1/-1 |
| Dimension(W×H×D) | 410×510×389mm |
| Weight | 23.5kg |

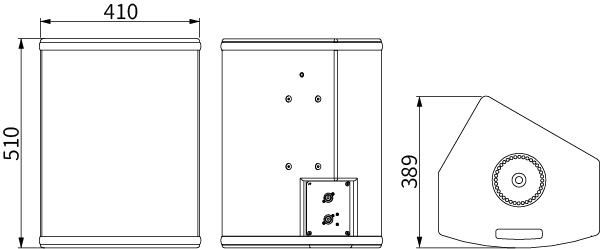

Dimension
