Y1230

Product Introduction

Y1230 is a single 12 "two-way array full frequency speaker system, which uses a 12" cone low-frequency speaker and a 3 "compression driver. The high pitch horn uses a hyperbola reflection wave source to make the high frequency fine and soft, high sensitivity, large sound pressure level, long range, rich, strong and powerful mid-range. Durable appearance, using high-density birch plywood as the structural material of the box, and the surface of the box is made of durable black polyurethane semi matte paint. Such speakers have very strong anti-aging strength, which can withstand the sun and rain for a long time. When installed indoors, they can prevent moisture and other harsh environments.


Product Parameters

System Type

Dual frequency single 12 inch

linear speaker

Frequency

55 Hz-20 kHz(±3dB)
Soeaker Unit LF 12"×1+HF 3"×1
Power

500W(Aes),2000W(Peak)

Sensitivity103dB
Max SPL131dB(Peak)
Impedamce
Dispersion80/120°×30°(H×V)
Wiring Mode+1/-1
Dimension(W×H×D)690×360×430mm
Weight

22.7kg

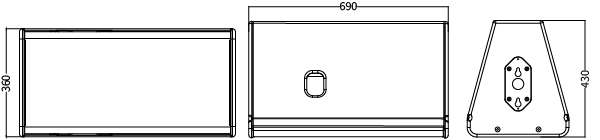

Dimension
