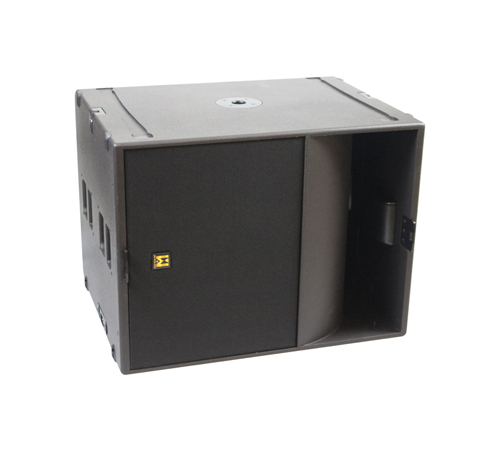

KS21

Product Introduction

KS21 is equipped with hanging parts, which can be hung together with QA15 FOCUS or QA15 WIDE, and can also be stacked to form different curve array systems. KS21 adopts a 21-inch high-power output bass driver, which is more powerful in low frequency. The driver has also undergone precise scientific design and has good heat dissipation, which is conducive to the reduction of compression power when the speaker works at a critical high power, ensuring that the speaker works stably for a long time and high efficiency output. Carefully optimized tuning makes the speaker have a good transient state, and the improved inverter system strengthens the structure of the cabinet while reducing the wind noise and airflow in the tube, reduces the adverse vibration of the cabinet, and makes the sound more pure and solid.


Product Parameters

System Type
Single 21 "reflector ultra low speaker

Frequency

31 Hz-100 Hz(±3dB)
Soeaker Unit LF 21"×1
Power

1200W(Aes),

4800W(Peak)

Sensitivity103dB
Max SPL138dB(Peak)
Impedamce
Connector2×Neutrik NI4
Wiring ModeLF +1/-1
Dimension(W×H×D)764×576×602mm
Weight

53.6kg

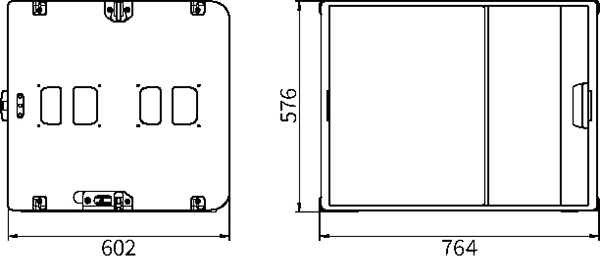

Dimension
