Product Introduction The CH20 dual 10-inch line array speaker features a built-in 2-in-2 frequency design with two 10-inch woofers and a 3-inch diaphragm high frequency compression driver unit, providing a constant horizontal coverage Angle of 100° and a vertical coupling Angle of 15° for extremely uniform frequency response across the full frequency band. Mainly used in mobile performances, as well as stadiums, banquet halls, bars, large outdoor performances and other sound reinforcement places. |
Product Parameters | |
| System Type | Two division dual 10 inch linear speaker |
Frequency | 63 Hz-18 kHz(±3dB) |
| Soeaker Unit | LF 10"×2+HF 3"×1 |
| Power | 600W(Aes),2400W(Peak) |
| Sensitivity | 107dB |
| Max SPL | 135dB(Peak) |
| Impedamce | 8Ω |
| Dispersion | 100°×15°(H×V) |
| Wiring Mode | +1/-1 |
| Dimension(W×H×D) | 714×294 ×420mm |
| Weight | 26.5kg |

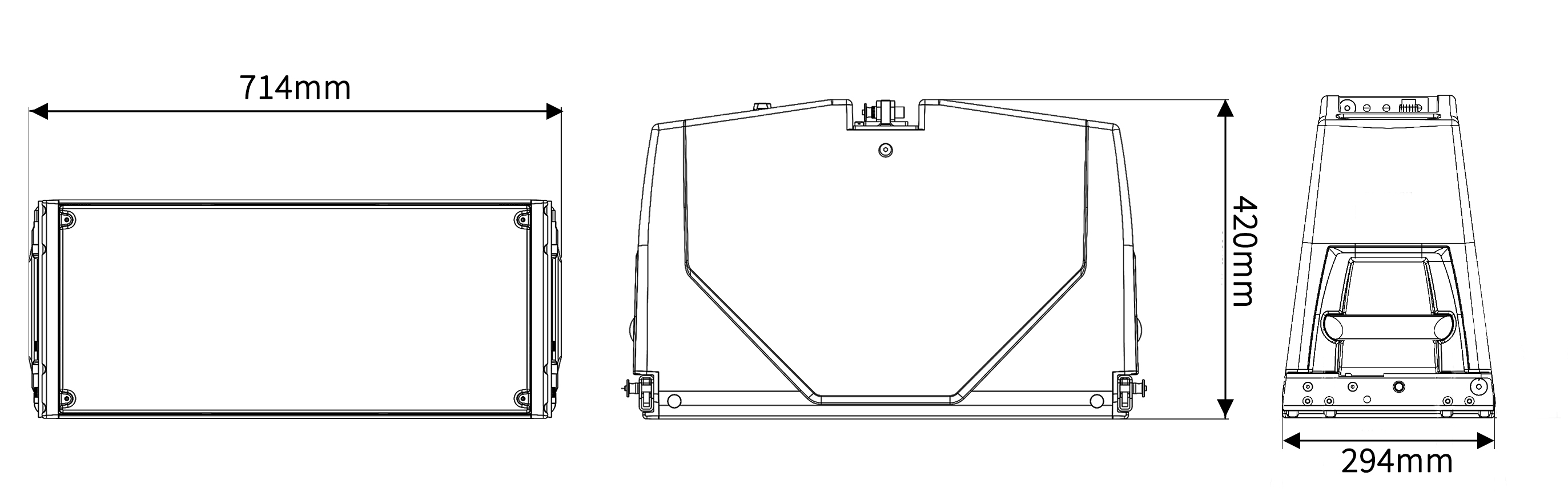

Dimension
