8015S

Main feature
The 8015S is a multifunctional dual-band 15 "high power full-band speaker system with a high power 15" low frequency driver and a 3 "high density compression driver. Precise coverage angles make it easy to achieve excellent spatial sound field coverage, and can provide listeners with high definition sound with only subtle field spillover. It ensures that the sound waves reach the listener at the same time. This clear and consistent sound image effect helps to distinguish and locate the direction of the student source. Due to the excellent performance of the audio and video voice, wide bandwidth, natural smooth sound replay, stable pointing coverage, large diffusion range, and simple box design is easy to flow or permanent lifting use, is the best choice for fixed installation and mobile performance.


Product parameter

系统类型 System Type
Divided-frequency 15-inch speaker

频率响应 Frequency

40 Hz-20 kHz(±3dB)
单元 Soeaker UnitLF 15"×1+HF 3"×1
功率 Power600W(AES),1800W(PEAK)
灵敏度 Sensitivity99dB
最大声压级 Max SPL132dB(Peak)
标称阻抗 Impedamce
覆盖角度 Dispersion 80° x  50°(H x V)
接线器 Connector2×Neutrik NI4
接线方式 Wiring Mode+1/-1
尺寸 Dimension(W×H×D)440×690×475mm
重量 Weight

31kg

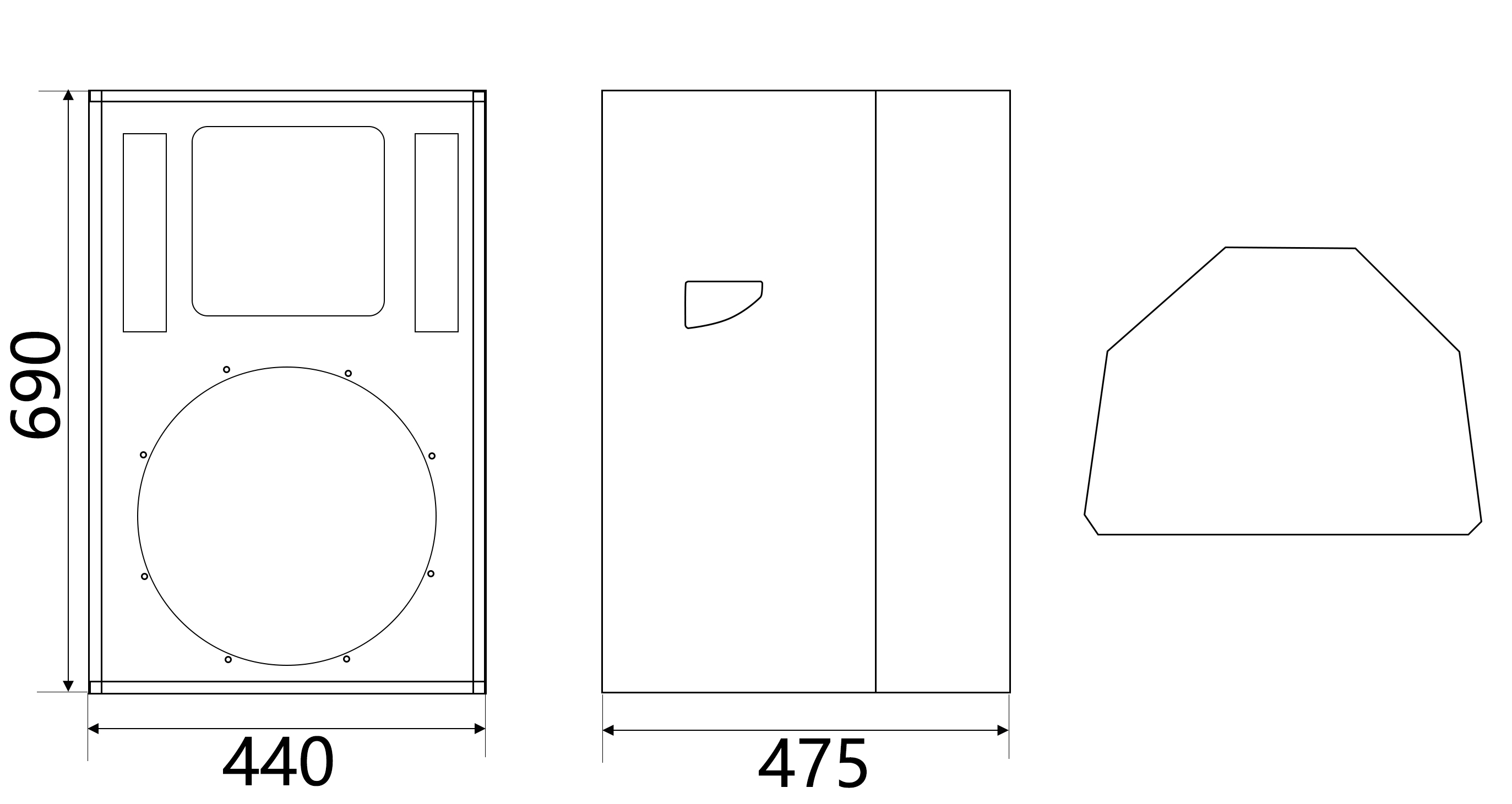

dimension
