Product Introduction The SX24 is a high-performance full-range passive two-way speaker with a low-frequency reflective cabinet design. It features two 12" low-frequency units and a 3" throat compression unit installed on a rotatable CD horn, making it suitable for various fixed installation applications. Two 12-inch low-frequency units are arranged in a dipole pattern, and within the same plane, they constantly point to control the lower limit to approximately 500 Hz. The specially designed inverting hole has optimized air convection characteristics, and the large-sized cabinet structure makes the low-frequency reproduction ability of the speaker better. The frequency response range has been expanded to 80 Hz to 18 kHz, and it can be used as an independent full-frequency system or in combination with the SXH218 subwoofer. |
Product parameters | |
| System Type | Two-way 12-inch full-range speakers |
Frequency | 80 Hz-18 kHz(±3dB) |
| Speaker Unit | LF 12"×2+HF 3"×1 |
| Power | 800W(Aes), |
| Sensitivity | 105dB |
| Max SPL | 138dB(Peak) |
| Impedamce | 8Ω |
| Dispersion | 75°×45°(H×V) |
| Connector | 2×Neutrik NI4 |
| Wiring Mode | +1/-1 |
| Dimension(W×H×D) | 410×800×435mm |
| Weight | 33.35kg |

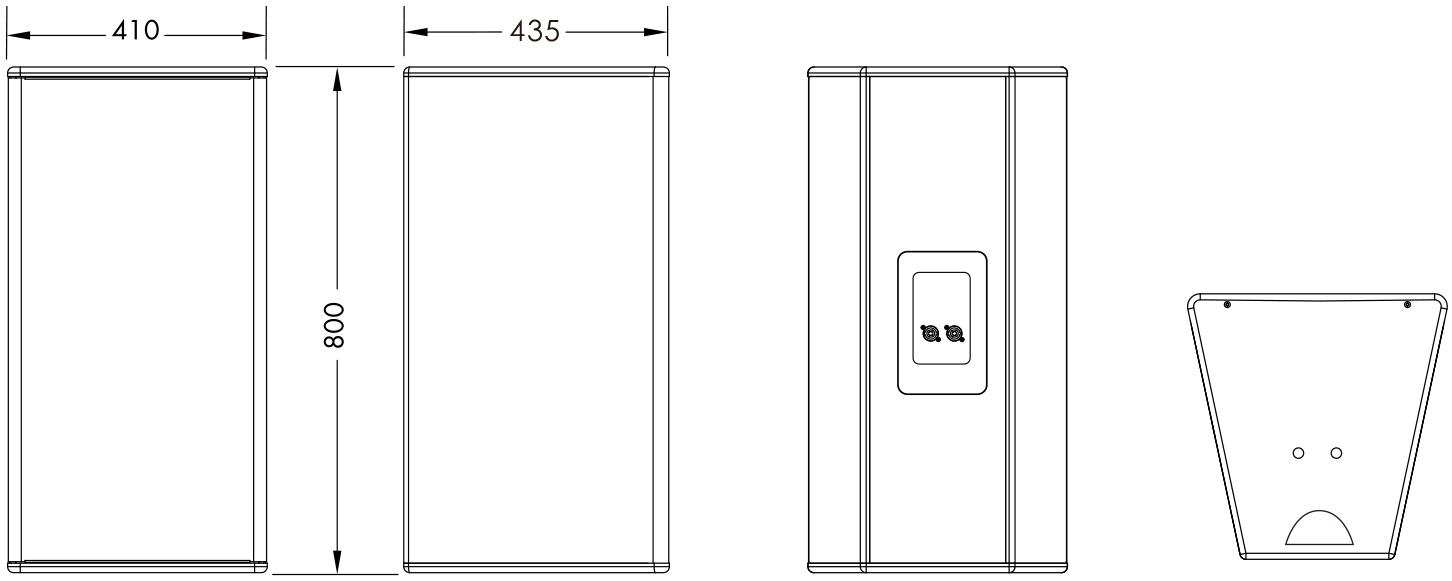

Box size
