B22

Product Introduction

The B22 speaker is a bass labyrinth low frequency speaker with a very high sound pressure level and is ideal for extending low frequencies. Ensure good dynamic performance while ensuring great dynamics, tight field and high performance. The B22 speaker uses a multi-layer birch board, anti-collision paint, and steel handles. A metal barrier is installed on the front of the speaker. An optional transport cover can be installed on the top and bottom, and an anti-flip guide plate and two hinge plates are mounted on the rear panel.


Product Parameters

System Type
Twin 18"hedged superheavy bass speakers

Frequency

37 Hz-90 Hz(±3dB)
Soeaker UnitLF 18"×2
Power

1000W(Aes),

4000W(Peak)

Max SPL143dB(Peak)
Impedamce
Connector2×Neutrik NI4
Wiring ModeLF +1/-1
Dimension(W×H×D)1160×585×920mm
Weight

106kg

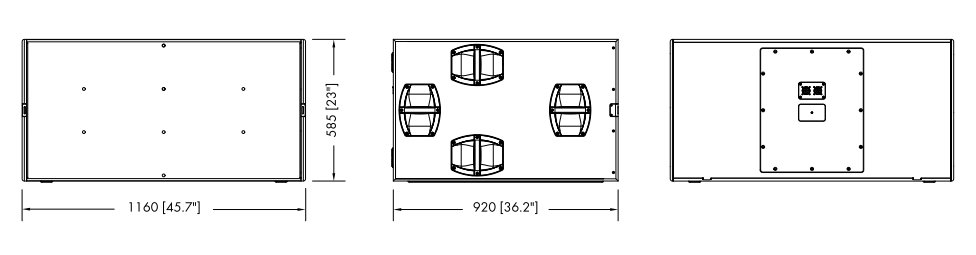

Dimension
