Product Introduction The 8XT is a high-end representative of the WAX · AUDIO XT series coaxial speaker system, designed for stage monitoring and distributed sound reinforcement applications. It has an operating frequency bandwidth of 65HZ-20KHZ. If combined with the SUB18 subwoofer, the low frequency can reach 32HZ. The 8XT adopts an advanced coaxial structure design, including a 1.52 "diaphragm compression driver unit loaded with a fixed directional conical waveguide and an 8" bass unit, It can provide fixed 60 ° axial symmetrical directional output, integrated compact bass backward design, perfect frequency response, phase response and excellent return capability |
Product Parameters | |
| System Type | Dual frequency 8-inch |
Frequency | 65 Hz-20 kHz(±3dB) |
| Soeaker Unit | LF 8"×1+HF 1.52"×1 |
| Power | 250W(Aes),1000W(Peak) |
| Sensitivity | 96dB |
| Max SPL | 127dB(Peak) |
| Impedamce | 8Ω |
| Dispersion | 60°(±10°）Symmetric |
| Connector | 2×Neutrik NI4 |
| Wiring Mode | +1/-1 |
| Dimension(W×H×D) | 250×422×271mm |
| Weight | 12kg |

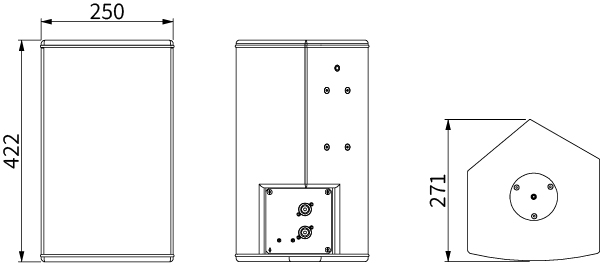

Dimension
