Product Introduction The 15XT is a high-end representative of the WAX · AUDIO XT series coaxial speaker system, which is a built-in binary frequency speaker specifically designed for stage monitoring and distributed sound reinforcement applications. Its operating frequency bandwidth is 50HZ-20KHZ. If combined with the SUB18 subwoofer, the low frequency can reach 32HZ. The 15XT adopts an advanced coaxial structure design, including a 3 "diaphragm compression driver unit loaded with a fixed directional conical waveguide and a 15" bass unit, It can provide fixed 60 ° axial symmetrical directional output, integrated compact bass backward design, perfect frequency response, phase response and excellent return capability. |
Product Parameters | |
| System Type | Dual frequency 15-inch |
Frequency | 50 Hz-20 kHz(±3dB) |
| Soeaker Unit | LF 15"×1+HF 3"×1 |
| Power | 450W(Aes),1400W(Peak) |
| Sensitivity | 101dB |
| Max SPL | 134dB(Peak) |
| Impedamce | 8Ω |
| Dispersion | 60°(±10°）Symmetric |
| Connector | 2×Neutrik NI4 |
| Wiring Mode | +1/-1 |
| Dimension(W×H×D) | 365×580×440mm |
| Weight | 27kg |

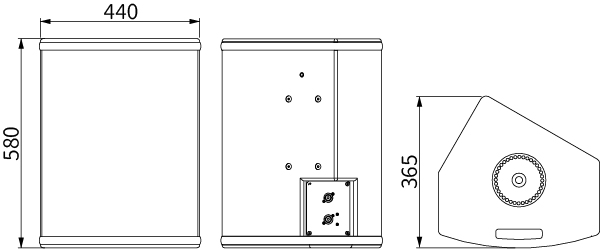

Dimension
