Product Introduction The 10XT is a high-end representative of the WAX · AUDIO XT series coaxial speaker system, which is a built-in binary frequency speaker specifically designed for stage monitoring and distributed sound reinforcement applications. Its operating frequency bandwidth is 60HZ-20KHZ. If combined with the SUB18 subwoofer, the low frequency can reach 32HZ. The 8XT adopts advanced coaxial structure design, including a 1.75 "diaphragm compression driver unit loaded with a fixed directional conical waveguide and a 10" bass unit, It can provide fixed 60 ° axial symmetrical directional output, integrated compact bass backward design, perfect frequency response, phase response and excellent return capability |
Product Parameters | |
| System Type | Dual frequency 10-inch |
Frequency | 60 Hz-20 kHz(±3dB) |
| Soeaker Unit | LF 10"×1+HF 1.75"×1 |
| Power | 280W(Aes),1100W(Peak) |
| Sensitivity | 97dB |
| Max SPL | 130dB(Peak) |
| Impedamce | 8Ω |
| Dispersion | 60°(±10°）Symmetric |
| Connector | 2×Neutrik NI4 |
| Wiring Mode | +1/-1 |
| Dimension(W×H×D) | 310×490×320mm |
| Weight | 13kg |

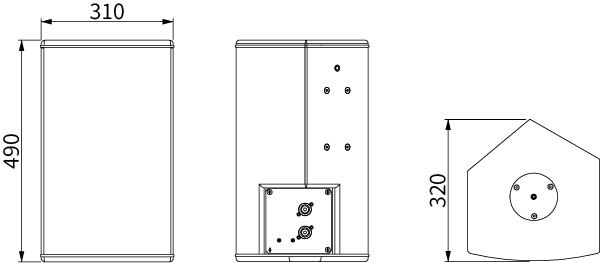

Dimension
