Q8-SUB

Product Introduction

Q8-SUB is a high-performance heart-shaped subwoofer. The Q8-SUB has integrated rigging equipment and the same acoustic and visual design as the Q182, which is only suitable for ground stacking applications. It is equipped with two long stroke neodymium magnetic drivers, an 18 "driver designed for bass reflection facing forward, and a 12" driver designed for two cavity bandpass radiating backward. The cardioid dispersion mode generated by this method can avoid excess energy behind the system, thereby reducing the low-frequency reverberation field and providing the highest low-frequency reproduction accuracy. The Q8-SUB speaker is made of marine plywood and has a PCP (polyurea cabinet protection) appearance that is resistant to impact and weather. The front of the speaker box is protected by a hard metal grille, each side panel has two handles, and the top panel has a bracket base.


Product Parameters

System Type

Dual drive supercardioid

ultra low speaker

Frequency

37 Hz - 115 Hz(±5dB)
Soeaker Unit

Front 18"×1+Rear 12"×1

Power

1000W(Aes),

4000W(Peak)

Sensitivity100dB
Max SPL136dB(Peak)
Impedamce
Dimension(W×H×D)630×500×700/804mm
Weight

46kg

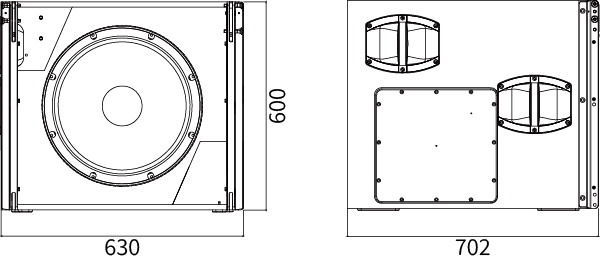

Dimension
