SYVA

Product Introduction

SYVA is a sound reinforcement system suitable for segmented sound sources at medium distance. It is designed for the complement of professional systems and those that require high fidelity and high sound pressure levels but cannot be reverberated. It's designed for a high-rise apartment on the outside. SYVA includes six 5 alto units that allow its frequency response to reach 87 Hz and three 1.75 treble units with compressed diaphragm mounted on an improved J-type DOSC waveguide. This arrangement of horn units, called the segmented sound source, is optimized for extended horizontally directed coverage and provides H/V directivity of 140° x 26° (+5/21°).


Product Parameters

 Rated Power Aes750W

 Peak Power

1500W
 Frequency Response

87 Hz - 20 kHz

 Speaker Unit

LF 5"×6+MF 1.75"×3, 压缩单元

 Sensitivity

106dB

 Max SPL137dB(Peak)
 Impedamce
 Dispersion140° × 26° (H×V)
 Wiring Mode2×Neutrik NI4
 Dimension(W×H×D)144×1301×170(209)mm
 Weight

21kg

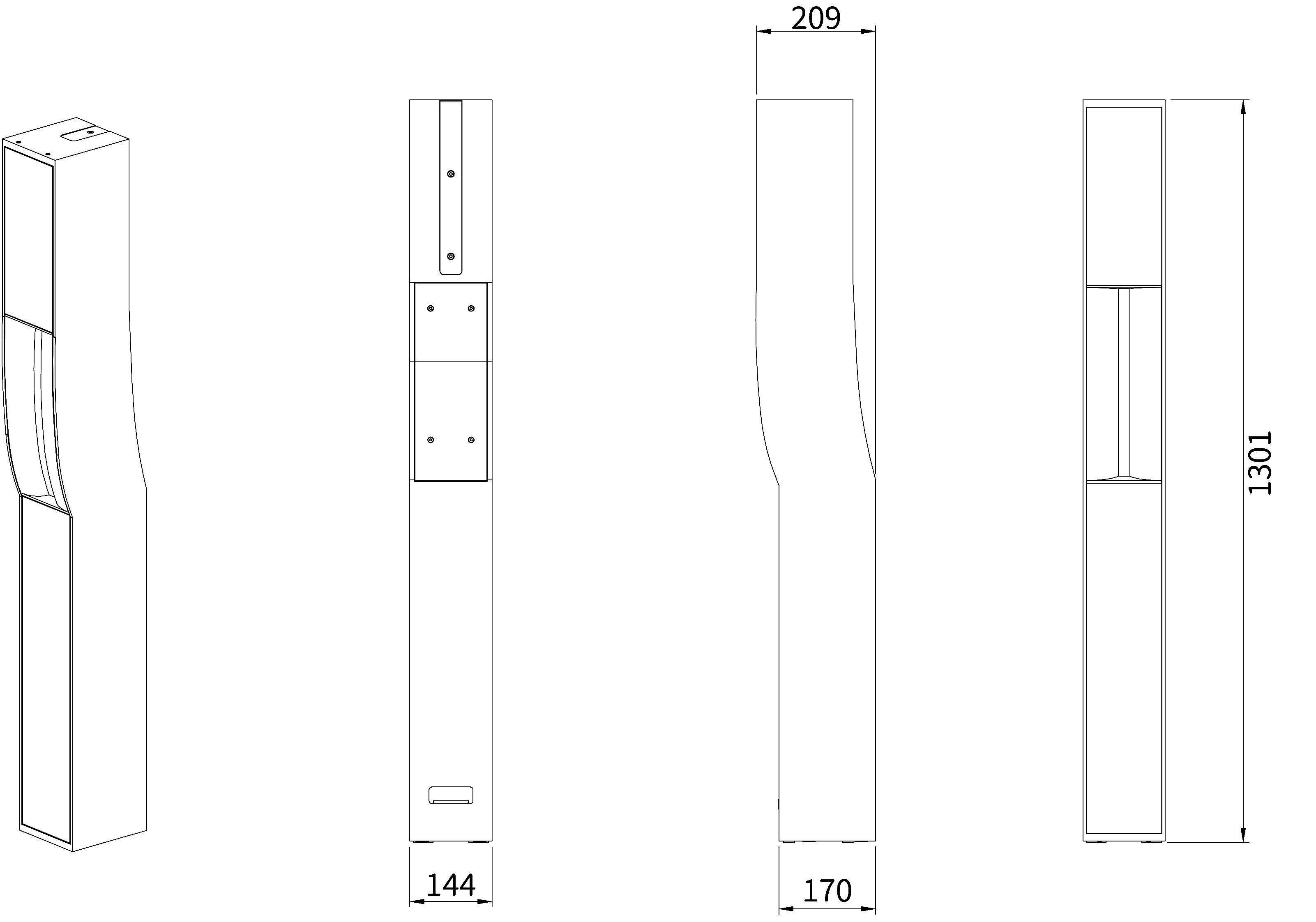

Dimension
