Product Introduction The CH18 is a high-performance subwoofer specifically designed for ground stacking installation. It features a low-frequency reflective design and is equipped with a long-stroke 18" driver unit, offering a power handling capacity of 800W. The system is designed to be lightweight and highly efficient. The speaker cabinet is made of wood plywood and coated with impact-resistant and weather-resistant PCP. Meanwhile, there are two handles on the side panel. Both sides of the speaker are embedded with handles for easy transportation. It can be installed in two ways: hanging or floor-standing. When paired with CH20 linear array mid-to-high frequency speakers, it is applied to high-quality medium-sized fixed installation and small mobile performance professional audio systems. |
Product parameters | |
| System Type | Single 18-inch super subwoofer |
Frequency | 37 Hz-140 Hz(±3dB) |
| Speaker Unit | LF 18"×1 |
| Power | 800W(Aes),3200W(Peak) |
| Sensitivity | 102dB |
| Max SPL | 137dB(Peak) |
| Impedamce | 8Ω |
| Wiring Mode | +1/-1 |
| Dimension(W×H×D) | 670×496×680mm |
| Weight | 50kg |

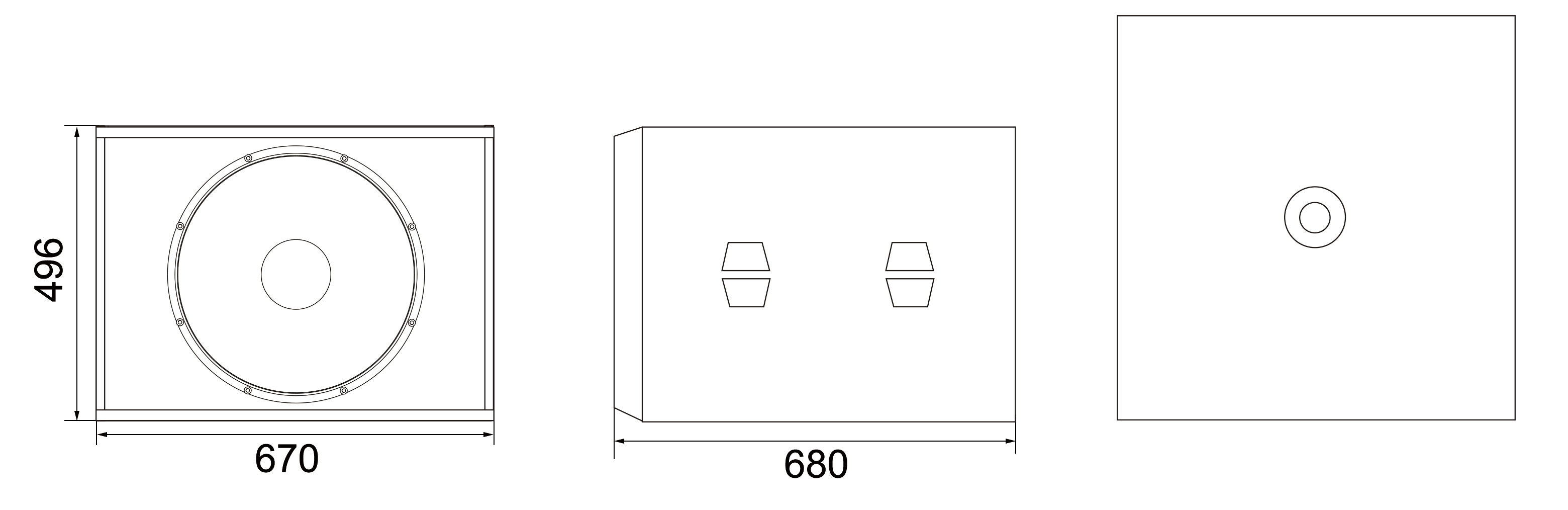

Size
